LASER WELDING MACHINE

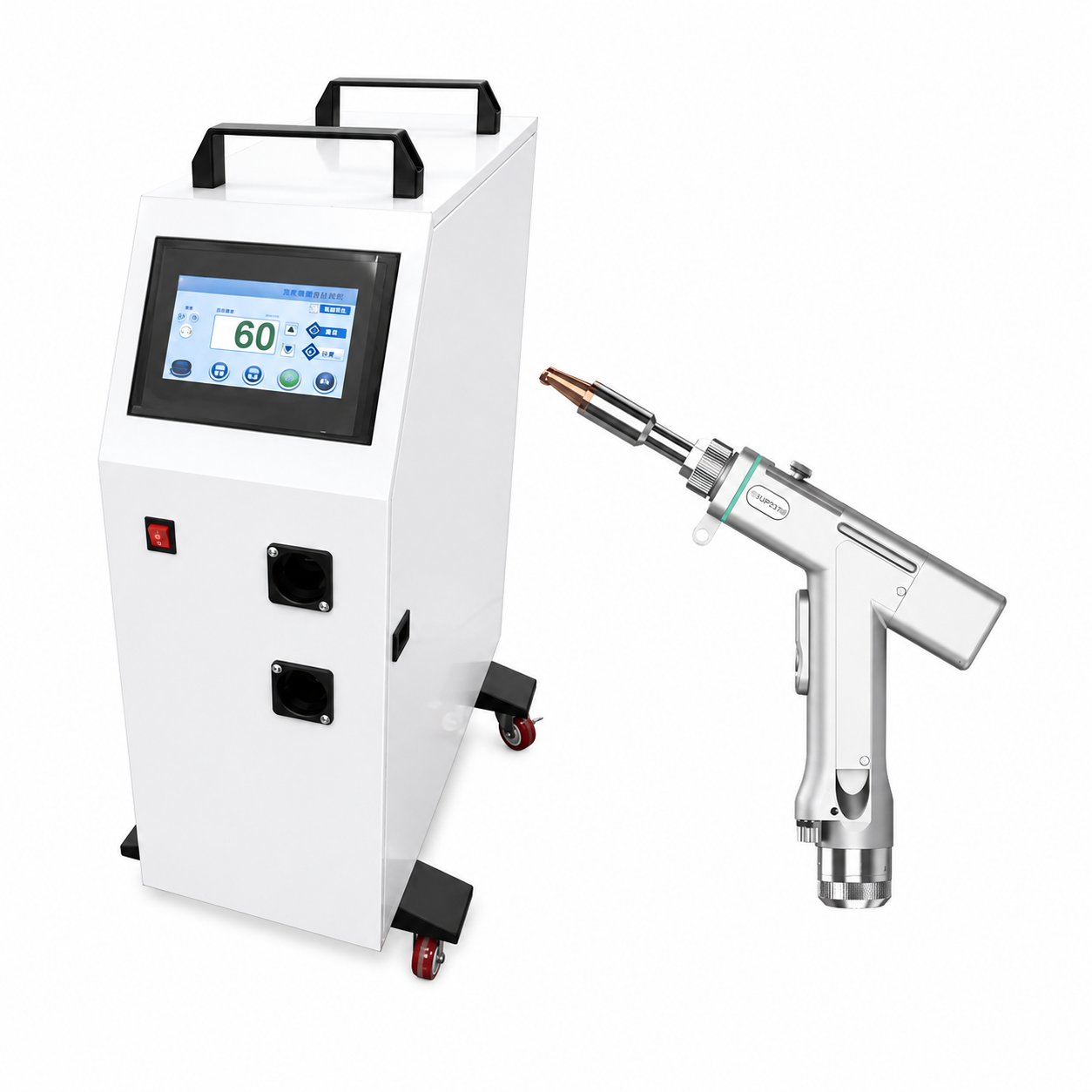

4-in-1 Handheld Laser Welding Machine laser welding, laser cleaning, laser cutting, and weld seam cleaning in a single compact machine.
- SKU: VLT-1500W,2000W,3000W
- Category: LASER WELDING MACHINE
Technical Specifications
| Brand | VLT |
| Product Name | 4-in-1 Fiber Laser Welding Machine |
| Machine Type | Handheld Fiber Laser Welding Machine |
| Functions | Laser Welding, Laser Cleaning, Laser Cutting, Weld Seam Cleaning |
| Available Power | 1500W / 2000W / 3000W |
| Laser Source | Raycus /MAX/ JLX |
| Laser Wavelength | 1080 ± 10 nm |
| Cooling System | Industrial Water Chiller (S&A / Hanli or Equivalent) |
| Welding Thickness | 0.5 mm – 8 mm (Depends on material and laser power) |
| Cleaning Width | Up to 120 mm (Model dependent) |
| Fiber Cable Length | 10 m (Optional: 15 m / 20 m) |
| Power Supply | 220V Single Phase (1500W) / 380V Three Phase (2000W & 3000W) |
| Cooling Method | Water Cooling |
| Compatible Materials | Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Brass, Galvanized Steel |
| Applications | Metal Fabrication, Kitchen Equipment, Elevator Industry, Automotive Parts, Electrical Cabinets, Sheet Metal, Hardware Manufacturing |
| Safety Features | Emergency Stop, Safety Interlock, Overheat Protection, Water Flow Protection, Laser Safety System |
Description
The Fiber Laser Welding Machine is a high-performance industrial welding solution designed to deliver fast, precise, and high-quality welding for a wide range of metal materials. Using advanced fiber laser technology, it produces strong, clean, and aesthetically superior welds with minimal heat distortion, making it an ideal choice for modern manufacturing and fabrication industries.
Compared to conventional TIG and MIG welding, the Fiber Laser Welding Machine offers significantly higher welding speed, deeper penetration, lower power consumption, and reduced post-processing. The handheld laser welding gun provides excellent flexibility, allowing operators to weld complex shapes, corners, and hard-to-reach areas with ease.
Equipped with an intelligent control system, industrial water chiller, and premium laser source, the machine ensures stable performance, long service life, and reliable operation in continuous production environments. It is suitable for welding stainless steel, mild steel, carbon steel, aluminum, brass, galvanized sheets, and other metal materials.
Available in 1500W, 2000W, and 3000W power options, the machine can handle material thicknesses from 0.5 mm to 8 mm, depending on the material type and welding process. It is widely used in sheet metal fabrication, kitchen equipment manufacturing, automotive parts, electrical cabinets, elevators, advertising, hardware products, and custom metal fabrication.
